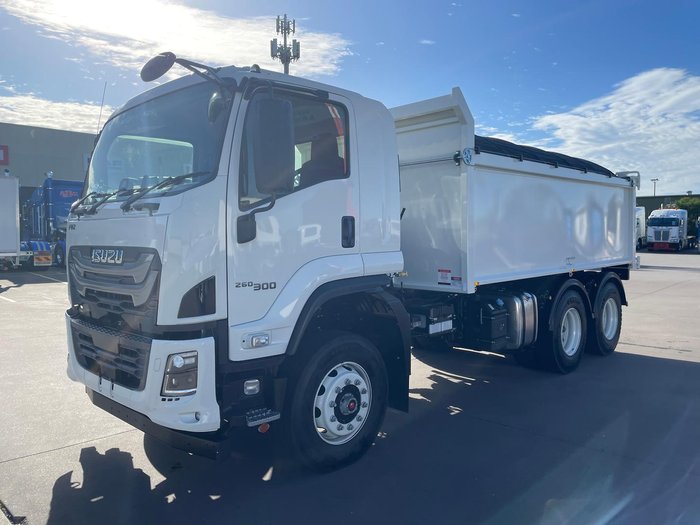

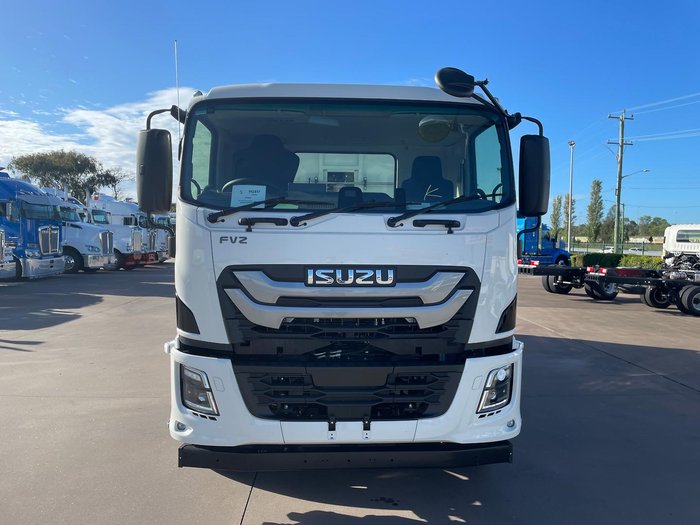

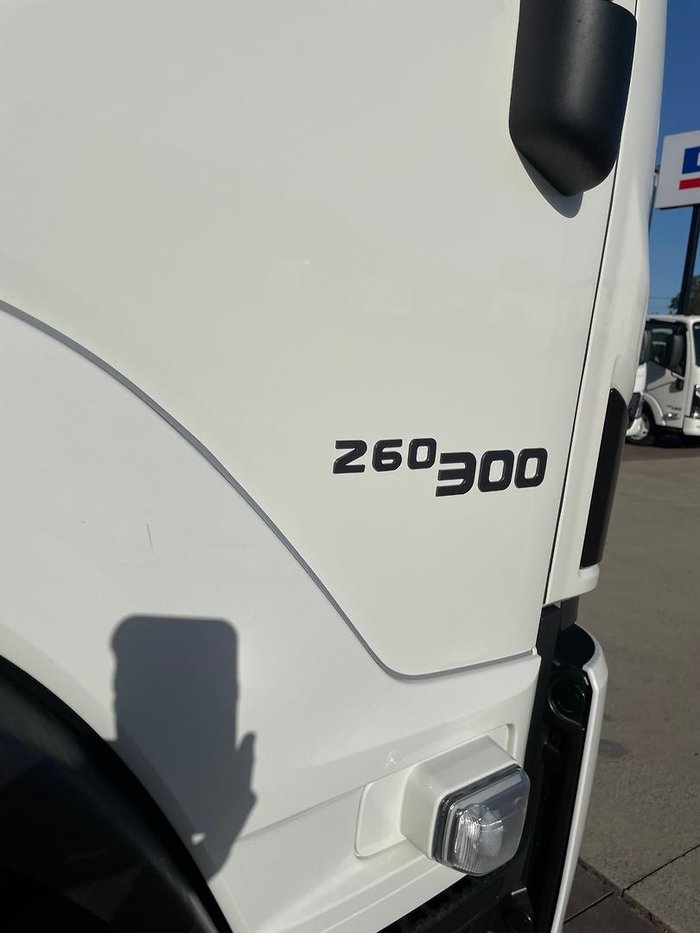

2025 Isuzu F Series FVZ 260-300 AT R46

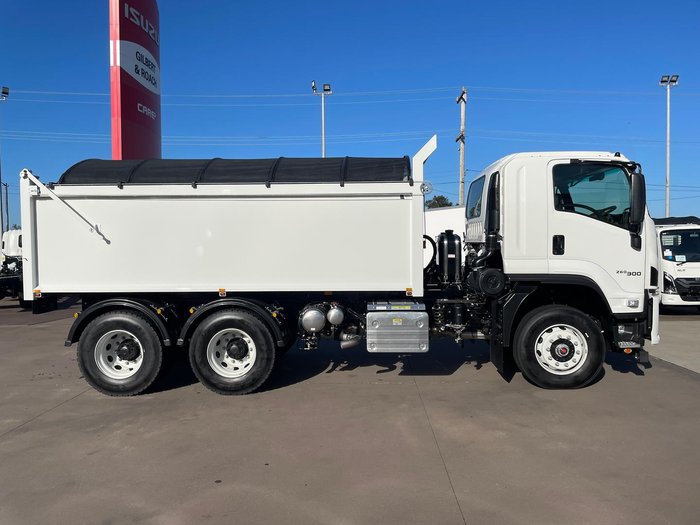

ISUZU FVZ 260-300 6x4 Custom Tipper option

In stock available for immediate delivery.

Approximate payload - 13,500kg

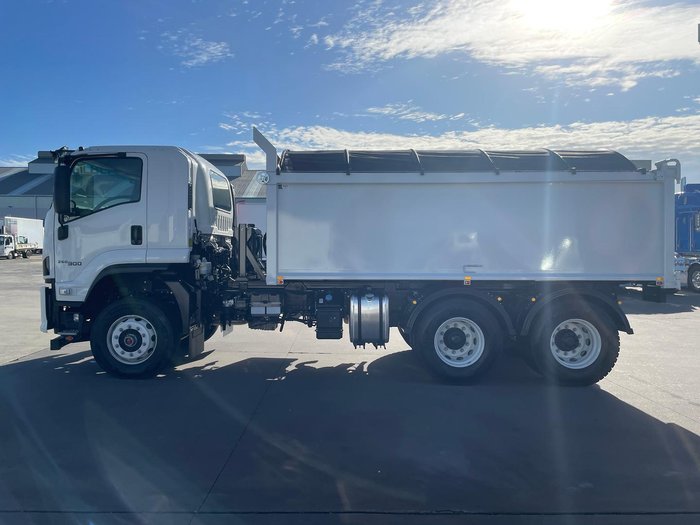

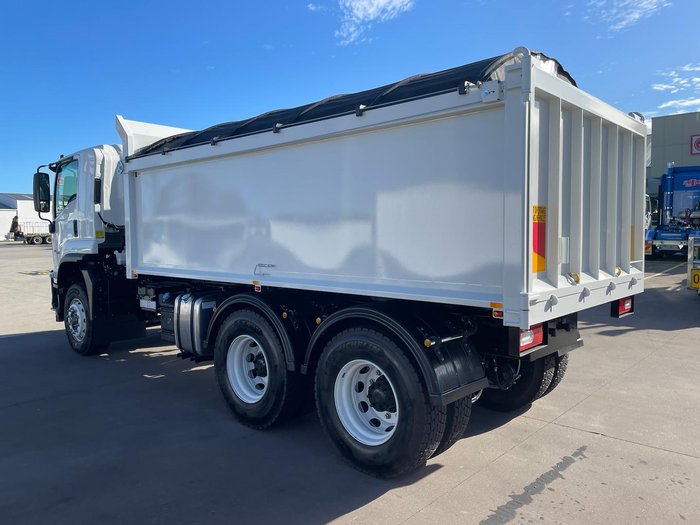

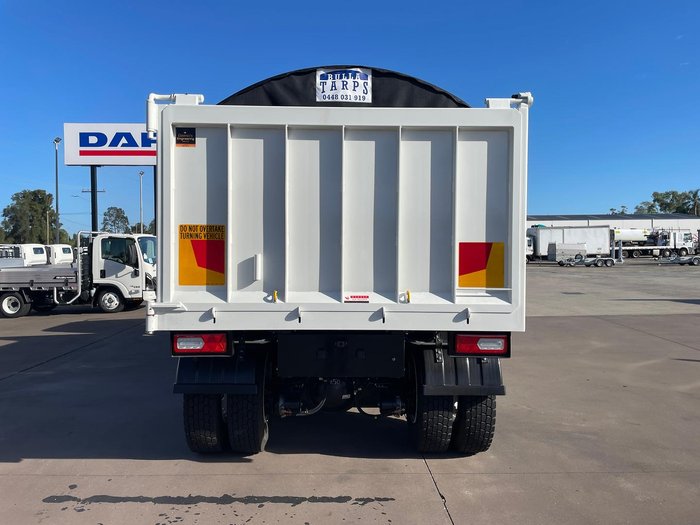

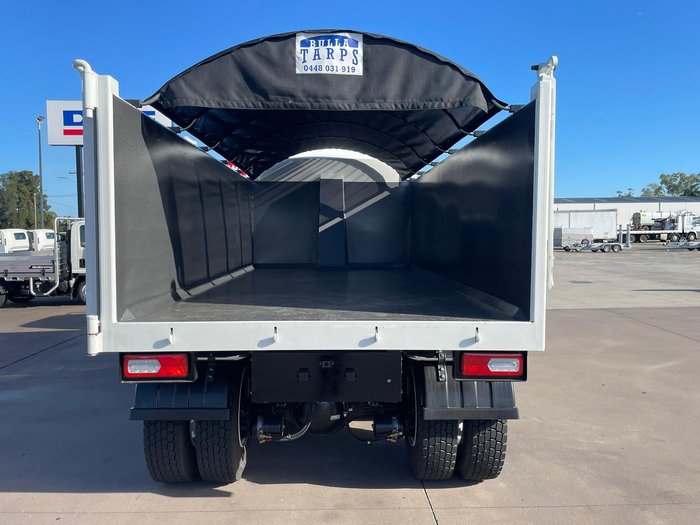

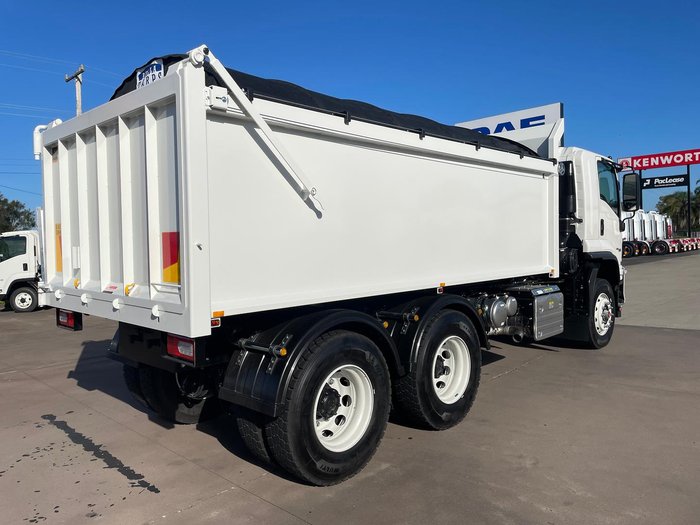

Tipping Body Specs
- Body dimensions, 4,850L x 2,400W x 1,250H

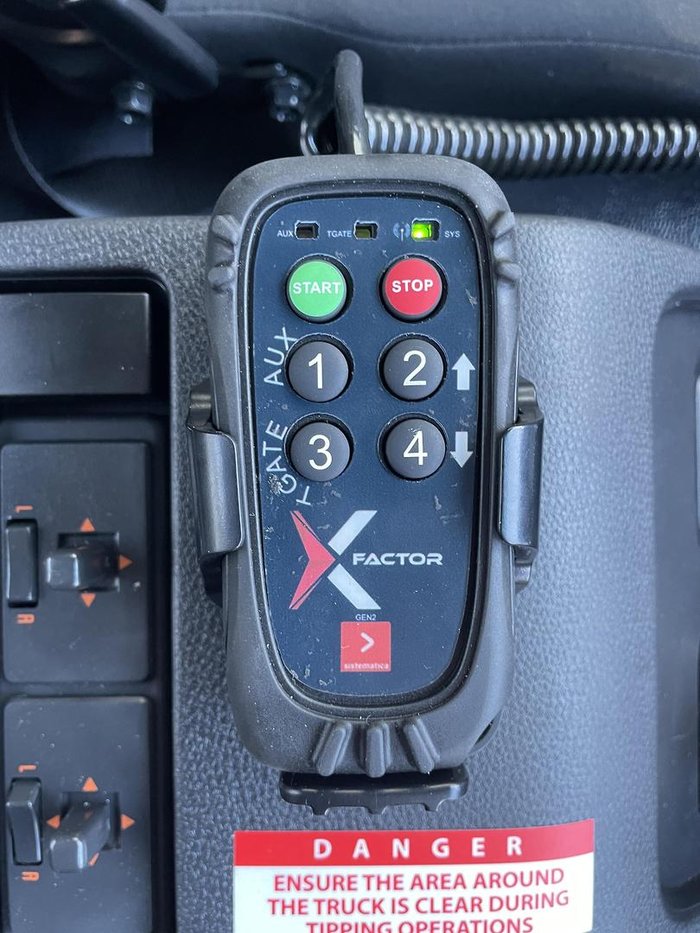

- Well Mounted Hoist

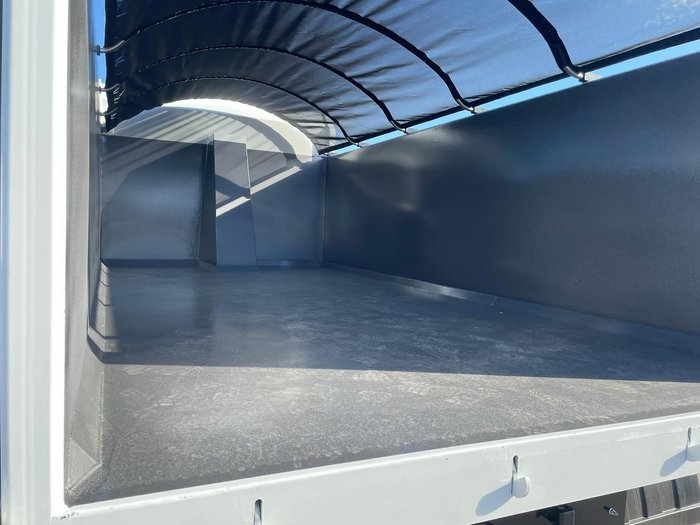

- 5mm Floor one piece

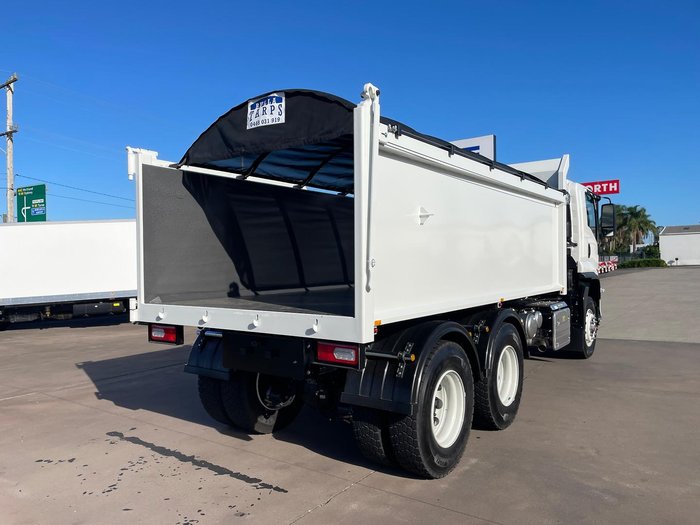

- Electric Retractable roll Tarp



Weight Ratings

GVM: 26,000 kg ?
GCM: 36,000 kg ?

Engine

Power: 221 kW @ 2200 rpm ?
Torque: 984 Nm @ 1000 - 2100 rpm ?
Displacement: 6690 cc
Emission Standard: ADR 80/04 Euro VI compliant ?

Transmissions

Type: 6-speed Automatic Transmission ?
Power Take Off Facility: LHS top openings on transmission bellhousing

Key Features

Advanced Emergency Braking (AEB)
Electronic Stability Control (ESC)
Full speed Adaptive Cruise Control (FACC)
Lane Departure Warning (LDW) and Lane Keeping Assist (LKA) ?

Driveline

Engine: Isuzu DB6A-TCC, 6 Cylinder ?

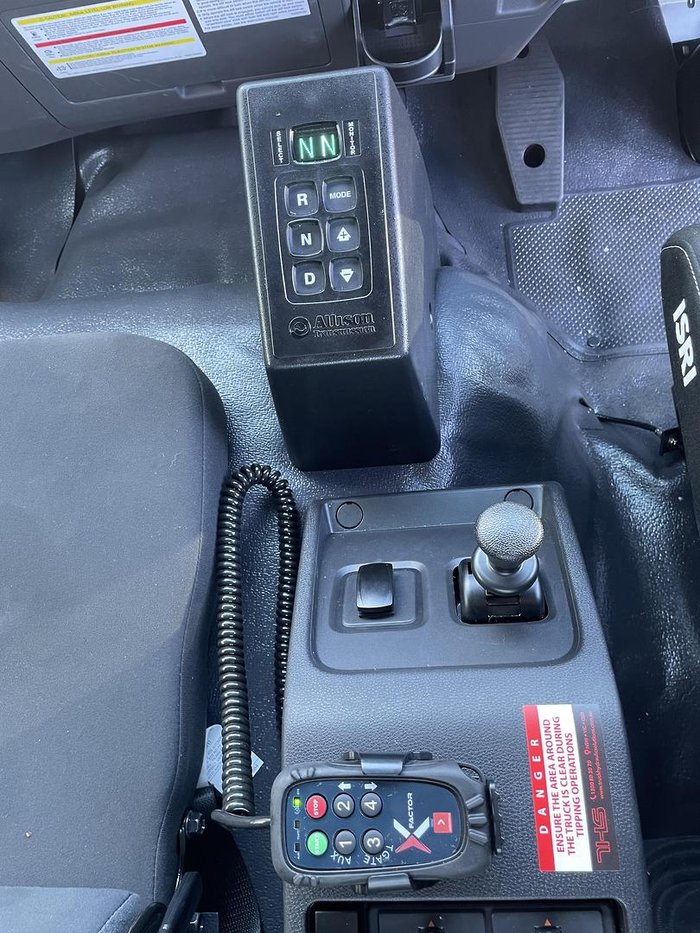

Transmission: Allison 3500 GEN 6 Automatic ?

Performance

Geared Speed: 108 km/h @ 2200 rpm at 26,000 kg GVM ?
Low Speed Gradeability: 18%

Chassis

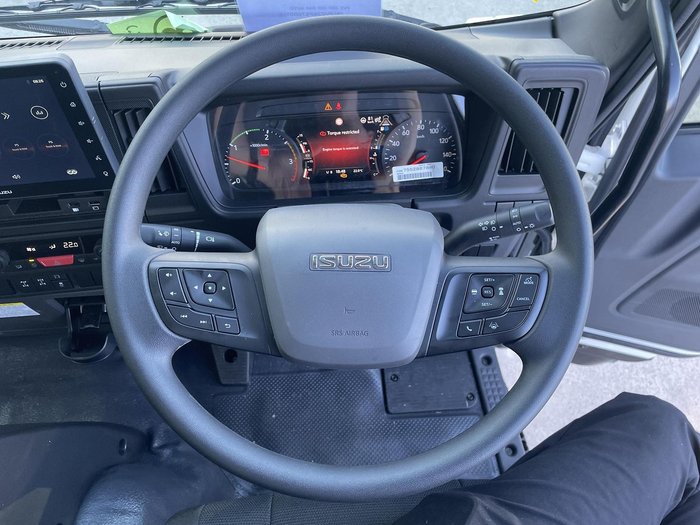

Steering: Electric Power Steering
Suspension: Front - Single stage steel taper leaf spring; Rear - Multi-leaf Spring

Weights & Dimensions

Cab Chassis Weight: Ranges from 6513 kg to 7237 kg depending on model ?
Wheelbase: Options of 4595 mm, 5485 mm, and 6655 mm

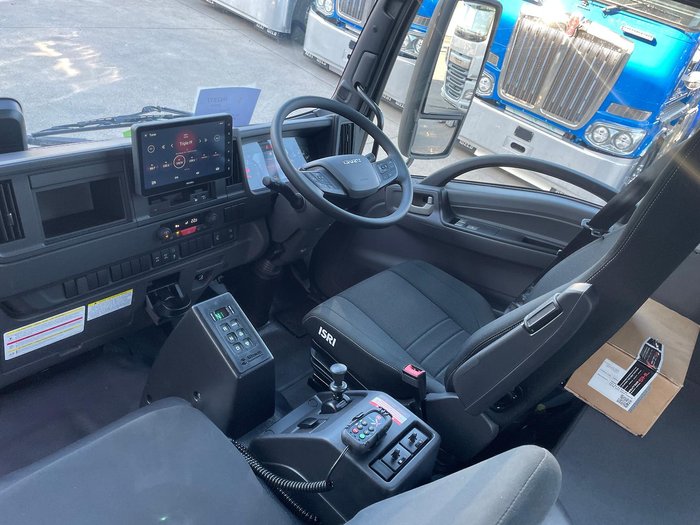

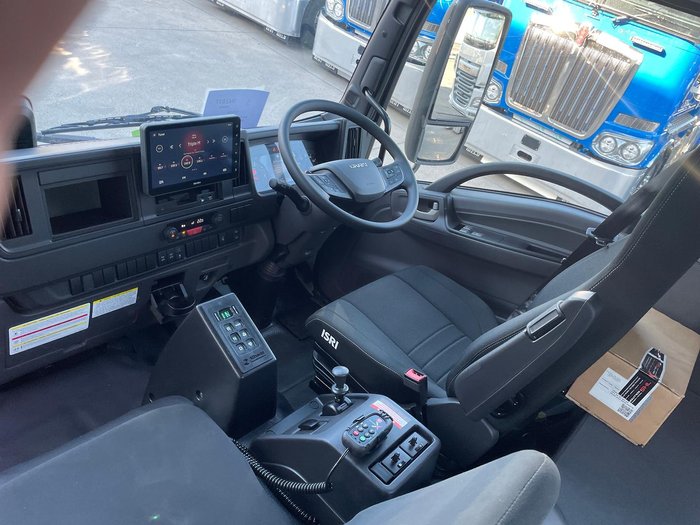

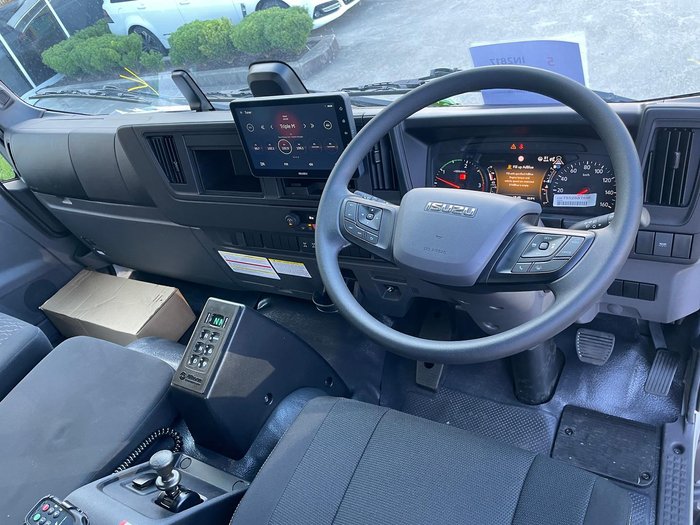

Cabin Features

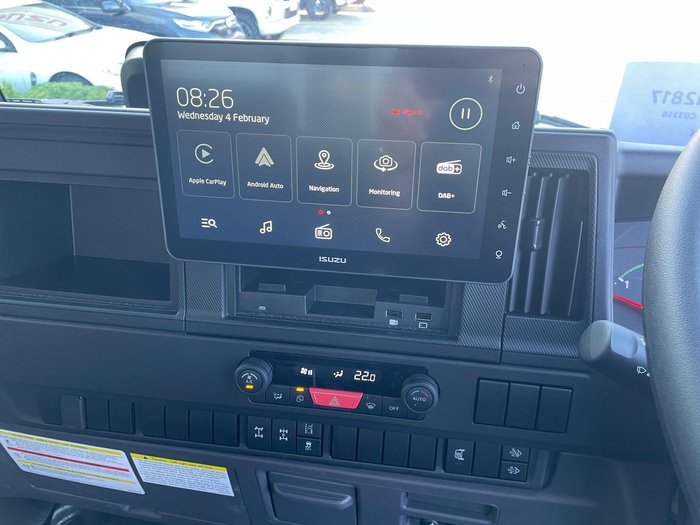

Air Conditioning: Auto control

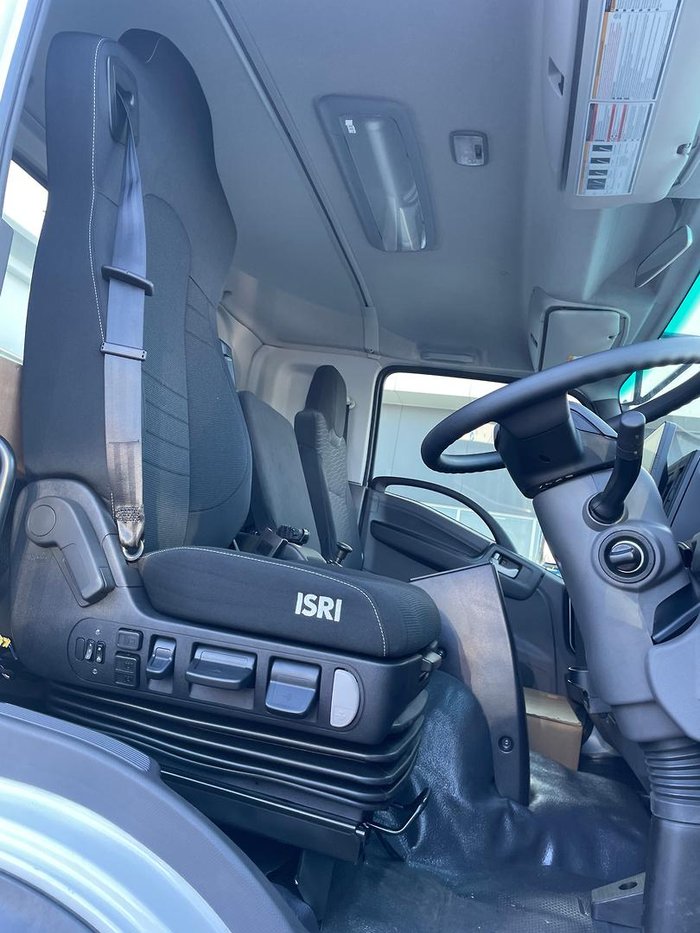

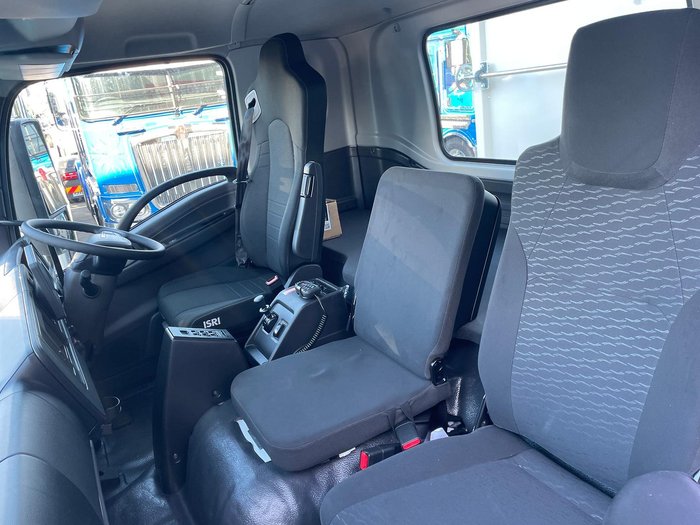

Driver's Seat: ISRI 6860/875 NTS2 air suspension with heating ?

Service & Support

Warranty: 6 Year Standard Warranty or 500,000 km ?
Roadside Assist: 6 Year Roadside Support, 24/7 Unlimited Km ?

Accessories

Options include Isuzu Genuine Bull Bar, Seat Covers, and Tyre Pressure Monitoring systems.
